Name: TAPC
SKU: 272654

TAPC, hole transport material for OLEDs

High hole mobility and can be used to simplify OLED structures

1,1-Bis[(di-4-tolylamino)phenyl]cyclohexane, known as TAPC, has been widely used as a hole transport material in organic light-emitting diodes (OLEDs) due to its high hole mobility.

Having a higher E_T(2.87 eV) than the typical blue phosphorescent guest material, TAPC can be used as both hole-transport layer material and as host for blue phosphorescent (such as ) guest molecules, resulting in a reduction of the number of organic layers and simplified OLED structures.

General Information

CAS number	58473-78-2
Chemical formula	C₄₆H₄₆N₂
Molecular weight	626.87 g/mol
Absorption	λ_max 305 nm (in THF)
Fluorescence	λ_em 414 nm (in THF)
HOMO/LUMO	HOMO = 5.5 eV, LUMO = 2.0 eV
Synonyms	4,4′-Cyclohexylidenebis[N,N-bis(4-methylphenyl)benzenamine] 1,1-Bis[(di-4-tolylamino)phenyl]cyclohexane
Classification / Family	Triphenylamine derivatives, Hole-injection layer (HIL) materials, Hole transport layer (HTL) materials, Electron blocking layer (EIL) materials, Phosphorescent host materials, Thermally-activated delayed fluorescence (TADF) materials, Organic light-emitting diodes (OLEDs), Organic electronics

Product Details

Purity

>99.5% (sublimed*)

>98.0% (unsublimed)

Melting point

186 °C (lit.)

Appearance

White powder/crystals

*For more details about sublimation, please refer to the .

Chemical Structure

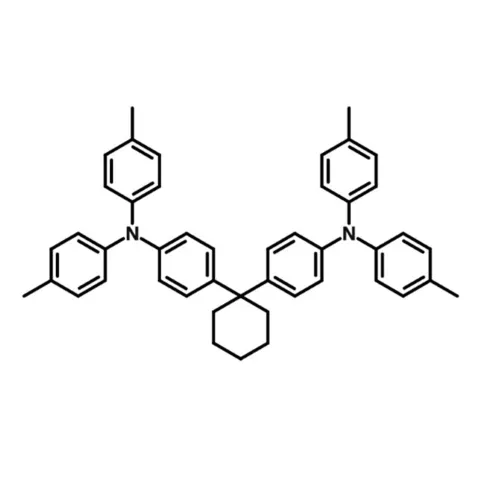

Chemical structure of 1,1-Bis[(di-4-tolylamino)phenyl]cyclohexane (TAPC)

Device Structure(s)

Device structure	ITO(50 nm)/PEDOT:PSS(60 nm)/TAPC(20 nm)/mCP(10 nm)/mCP:BmPyPb*:4CzIPN(25 nm)/TSPO1(35 nm)/LiF(1 nm)/Al(200 nm) [1]
Colour	Green
Max. EQE	28.6%
Max. Power Efficiency	56.6 lm W⁻¹

Device structure	ITO/TAPC (40 nm)/TCTA (2 nm)/26DCzPPy:TCTA:FIrpic (0.4:0.4:0.2) (5 nm)/26DCzPPy:PPT:FIrpic (0.4:0.4:0.2) (5 nm)/3TPYMB (55 nm)/CsF (2 nm)/Al (180 nm) [2]
Colour	Blue
Current Efficiency @ 1000 cd/m²	42 cd/A
Power Efficiency @ 1000 cd/m²	30 lm W⁻¹

Device structure	ITO/TAPC:MoO_x (10 nm, 15 wt.%)/TAPC(35 nm)/TcTa:Ir(BT)₂(acac) (5 nm, 4 wt.%)/26DCzPPy:FIrpic (5 nm, 15 wt.%)/26DCzPPy:Ir(BT)₂(acac) (5 nm, 4 wt.%)/BPhen (40 nm)/Cs₂CO₃ (1 nm)/Al (100 nm) [3]
Colour	White
Max. EQE	13.2%
Max. Current Efficiency	35.0 cd/A
Max. Power Efficiency	30.6 lm W⁻¹

Device structure	Si/SiO₂/Al (80 nm)/MoO_x: TAPC (43 nm, 15 wt.%)/TAPC (10 nm)/Ir(piq)₃:TcTa (3 nm, 6%)/TcTa (2 nm)/FIrpic:26DCzPPy (5 nm, 12 wt.%)/BPhen (2 nm)/PO-01*:26DCzPPy (5 nm, 6 wt.%)/BPhen (40 nm)/Cs₂CO₃ (1 nm)/Al (2 nm)/Cu (18 nm)/TcTa (60 nm) [4]
Colour	White
EQE @ 1000 cd/m²	10%
Current Efficiency @ 1000 cd/m²	25.6 cd/A
Power Efficiency @ 1000 cd/m²	20.1 lm W⁻¹

Device structure	ITO (90 nm)/HATCN (5 nm)/TAPC (65 nm)/10 wt% fac -Ir(mpim)₃ –doped TCTA (5 nm)/10 wt% fac -Ir(mpim)₃ -doped 26DCzPPy (5 nm)/B3PyPB* (65 nm)/Liq (2 nm)/Al (80 nm) [5]
Colour	Blue
EQE @ 100 cd/m²	29.6%
Current Efficiency @ 100 cd/m²	73.2 cd/A
Power Efficiency @ 100 cd/m²	75.6 lm W⁻¹

Device structure	ITO/TAPC (40 nm)/TcTa (10 nm)/5a* (4%):TcTa (5 nm)/5a* (4%):26DCzPPy (10 nm)/TmPyPB (40 nm)/LiF(1 nm)/Al(100 nm) [6]
Colour	Red
Max. Luminance	11,023 cd/m²
Max. Current Efficiency	17.36 cd/A
Max. Power Efficiency	14.73 lm W⁻¹

Device structure	ITO /TAPC/(1wt% DPB:99wt%tri-PXZ-TRZ*):CBP (15:85)/LiF/Al [7]
Colour	Red
Max EQE	17.5%
Max. Power Efficiency	28 lm W⁻¹

Device structure	ITO (180 nm)/TAPC (60 nm)/mCP:Firpic–8 wt% (10 nm)/Ir(ppz)₃ (1.5 nm)/mCP:Firpic–8 wt% (10 nm)/Ir(ppz)₃ (1.5 nm)/mCP:Firpic–8 wt% (10 nm)/TPBi (30 nm)/Liq (2 nm)/Al (120 nm) [8]
Colour	Blue
Luminance @ 200 cd/m²	32,570 cd/m²
Max. Current Efficiency	43.76 cd/A
Max. EQE	23.4%
Max. Power Efficiency	21.4 lm W⁻¹

Device structure	ITO/TAPC (50 nm)/TcTa:FIrpic (7%,10 nm)/26DCzPPy:FIrpic (20%, 10 nm)/Tm3PyPB (20 nm)/Tm3PyPB:Cs (30 nm)/LiF (1 nm)/Al (120 nm) [9]
Colour	Blue
Max. EQE	20.3%
Max. Power Efficiency	36.7 lm W⁻¹

Device structure	ITO/MoO₃ (8 nm)/(NPB)(80 nm)/TAPC(5 nm)/TCTA:4 wt% Ir(MDQ)₂(acac) (4 nm)/TCTA:2 wt% Ir(ppy)₃ (4 nm)/43 wt% TCTA: 43 wt% 26DCzPPy: 14 wt% FIrpic (5 nm)/TmPyPb (40 nm)/LiF/Al [10]
Colour	White
Max. EQE	19.4%
Max. Current Efficiency	43.6 cd/A
Max. Power Efficiency	45.8 lm W⁻¹

Device structure	ITO/PEDOT:PSS(40 nm)/TCTA:TAPC:FIrpic:Ir(ppy)₃:Ir(MDQ)₂(acac) (40nm)/TmPyPB (50 nm)/LiF (1 nm)/Al [11]
Colour	White
Max. Current Efficiency	37.1 cd/A
Max. Power Efficiency	32.1 lm W⁻¹

Device structure	ITO/HAT-CN (10 nm)/HAT-CN:TAPc (2:1, 60 nm)/TAPc (20 nm)/TcTa:Be(pp)₂:Ir(mppy)₃ (1:1:8 wt% 10 nm)/Be(pp)₂:Liq (1:10%, 35 nm)/Liq (1 nm)/Al (1 nm)/HAT-CN (20 nm)/HAT-CN:TAPc (2:1, 10 nm)/TAPc (40 nm)/ TcTa:Be(pp)₂:Ir(mppy)₃ (1:1:8 wt% 10 nm)/Be(pp)₂ (15 nm)/Be(pp)₂:Liq (1:10%, 35 nm)/Liq (1 nm)/Al (100 nm) [12]
Colour	Green
Max. Current Efficiency	241 cd/A
Max. Power Efficiency	143 lm W⁻¹

Device structure	ITO/HAT-CN (10 nm)/TAPC (45 nm)/BCzSCN*:FIrpic:PO-01 (8 wt%, 0.5 wt%, 20 nm)/TmPyPB (50 nm)/Liq (2 nm)/Al (120 nm) [13]
Colour	Blue
Max. EQE	22%
Max. Current Efficiency	66.0 cd/A
Max. Power Efficiency	64.0 lm W⁻¹

Device structure	ITO/HAT-CN (10 nm)/TAPC (45 nm)/mCP:Ir(dbi)₃10 wt% (20 nm)/TmPyPB (40 nm)/Liq (2 nm)/Al (120 nm) [14]
Colour	Sky Blue
Max. EQE	23.1%
Max. Current Efficiency	61.5 cd/A
Max. Power Efficiency	43.7 lm W⁻¹

Device structure	Graphene (2–3 nm)/TAPC (30 nm)/HAT-CN (10 nm)/TAPC (30 nm)/HAT-CN (10 nm)/TAPC (30 nm)/ TCTA:FIrpic (5 nm)/DCzPPy: FIrpic (5 nm)/BmPyPB (40 nm)/LiF (1 nm)/Al (100 nm) [15]
Colour	Blue
Max. EQE	15.1%
Max. Power Efficiency	14.5 lm W⁻¹

Device structure	ITO/TAPC (40 nm)/TCTA:Ir(piq)₃ 2 wt % (1 nm)/TCTA 46 wt %:BP4mPy 46 wt %: FIrpic 8 wt % (28 nm)/BP4mPy:Ir(piq)₃ 3 wt % (1 nm)/BP4mPy (40 nm)/LiF (0.8 nm)/Al (150 nm) [16]
Colour	White
Max. Luminance	19,007 cd/m²
Max EQE	11.3%
Max. Current Efficiency	15.6 cd/A
Max. Power Efficiency	16.3 lm W⁻¹

*For chemical structure information please refer to the cited references

Pricing

Grade	Order Code	Quantity	Price
Sublimed (>99.5%)	M811	500 mg	[[price gbp="310"]]
Sublimed (>99.5%)	M811	1 g	[[price gbp="480"]]
Unsublimed (>98.0%)	M812	1 g	[[price gbp="300"]]

MSDS Documentation

Literature and Reviews

Engineering of Mixed Host for High External Quantum Efficiency above 25% in Green Thermally Activated Delayed Fluorescence Device, B. Kim et al., Adv. Funct. Mater., 24, 3970–3977 (2014).
Blue and white phosphorescent organic light emittingdiode performance improvementbyconfining electrons and holes inside double emitting layers, Y-S.Tsai et al., J. Luminescence 153, 312–316 (2014);
Color stable and low driving voltage white organic light-emitting diodes with low efficiency roll-off achieved by selective hole transport buffer layers, Z. Zhang et al., Org. Electronics 13, 2296–2300 (2012);

High performance top-emitting and transparent white organic light-emitting diodes based on Al/Cu/TcTa transparent electrodes for active matrix displays and lighting applications, Z. Zhang et al., Org. Electronics,14, 1452–1457 (2013);
Low-Driving-Voltage Blue Phosphorescent Organic Light-Emitting Devices with External Quantum Efficiency of 30%, K. Udagawa et al., Adv. Mater., 26, 5062–5066 (2014); DOI: 10.1002/adma.201401621.
Efficient red organic electroluminescent devices by doping platinum(II) Schiff base emitter into two host materials with stepwise energy levels, L. Zhou et al., Opt. Lett., 38 (14), 2373-2375 (2013);
High-efficiency organic light-emitting diodes with fluorescent emitters, H. Nakanotani et al., Nat. Commun., 5, 4016, DOI: 10.1038/ncomms5016.
Luminous efficiency enhancement in blue phosphorescent organic light-emitting diodes with an electron confinement layers, J-S. Kang et al., Optical Materials 47, 78–82 (2015); doi:10.1016/j.optmat.2015.07.003.
Dependence of Light-Emitting Characteristics of Blue Phosphorescent Organic Light-Emitting Diodes on Electron Injection and Transport Materials, Jeong-Ik Lee et al. ETRI J., 34 (5), 690-695 (2012).
High-Efficiency Phosphorescent White Organic Light-Emitting Diodes with Stable Emission Spectrum Based on RGB Separately Monochromatic Emission Layers, Q. Zhang et al., Chin. Phys. Lett., 31 (4) 046801 (2014).
Solution-Processed Small Molecules As Mixed Host for Highly Efficient Blue and White Phosphorescent Organic Light-Emitting Diodes, Q Fu. et al., ACS Appl. Mater. Interfaces, 4, 6579−6586 (2012); dx.doi.org/10.1021/am301703a.
Highly efficient and stable tandem organic light-emitting devices based on HAT-CN/HAT-CN:TAPC/TAPC as a charge generation layer, Y. Dai et al., J. Mater. Chem. C, 3, 6809-6814 (2015);DOI: 10.1039/C4TC02875A.
Bipolar host materials for high efficiency phosphorescent organic light emitting diodes: tuning the HOMO/LUMO levels without reducing the triplet energy in a linear system, L. Cui et al., J. Mater. Chem. C, 1, 8177-8185 (2013); DOI: 10.1039/C3TC31675K.
Highly efficient phosphorescent organic light-emitting diodes using a homoleptic iridium(III) complex as a sky-blue dopant, J. Zhuang et al., Org. Electronics 14, 2596–2601 (2013);
Multilayered graphene anode for blue phosphorescent organic light emitting diodes, J. Hwang et al., Appl. Phys. Lett. 100, 133304 (2012);
Efficient red, green, blue and white organic light-emitting diodes with same exciplex host, C-H. Chang et al., Jpn. J. Appl. Phys. 55, 03CD02 (2016);
